5mW 10mW 20mW Visual Fault Locator with Metal Body

Name: 5mW 10mW 20mW Visual Fault Locator with Metal Body
Brand: DOWELL
Price: 1 USD

Quality 5mW 10mW 20mW Visual Fault Locator with Metal Body for sale

Model Number : DW-VFL-3

Place of Origin : Zhejiang, China

Brand Name : DOWELL

MOQ : 100 pieces

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500 PCS Per 7 Days

Delivery Time : 7-15 Days

Wavelength : 650nm ± 10nm

Output optical power : 10mW 20mW

Material : Aluminum alloy

Size : 190*25MM

Network : FTTH

Item No. : DW-VFL-3

Contact Now

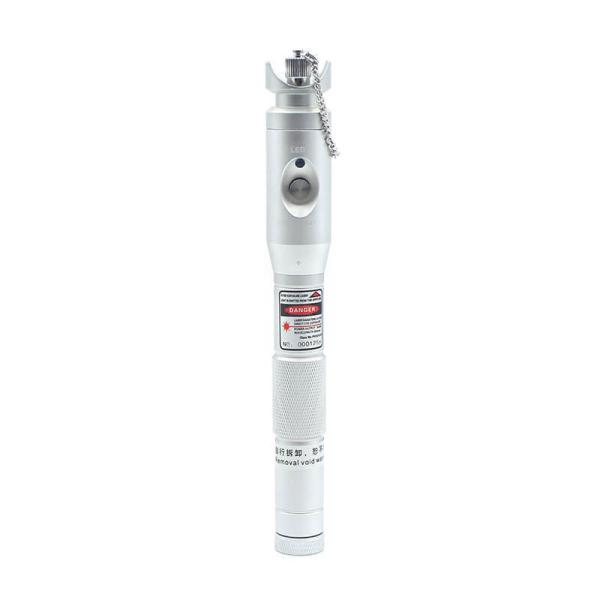

5mW 10mW 20mW Visual Fault Locator with Metal Body

The pen-type visual fault locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical networks. And it is the essential test tool for the FTTH project. This visual fault locator is with so many advantages, such as long working life, rugged, portable, beautiful appearance and so on. It is the best choice for the field personnel.

Specification:

Features:

1.1 2.5mm universal connector; but for 1.25mm connectors, we can provide FC (male)-LC (Female) adaptor

1.2 Power: 5mw(>5km), 10mw (>10km), 20mw (>20km), 30mw(>30km), 40mw (>40km)

1.3 Operates either in CW or Pulsed mode with constant output power

1.4 Low battery warning

1.5 Long battery life (up to 60 hours)

1.6 Drop-resistant and dust-proof design of laser head

1.7 Laser case ground design prevents ESD damage

1.8 Portable and rugged

1.9 360° rotation protecting ring

Dimension:

Application:

2.1 Find breakpoints, poor connections, bending or cracking in fiber optic cables

2.2 Find faults in an OTDR dead zone

2.3 Is used for end-to-end visual fiber identification.

2.4 Maintenance in telecom, CATV

2.5 Test Lab of optical fibers

2.6 Fiber routing and continuity checking in optical networks

2.7 Other fiber optic measurements
